IoT Architecture



IoT arrangements have become an ordinary piece of our lives. From the smartwatch on your wrist to modern ventures, associated gadgets are everywhere.

An entryway naturally opens, an espresso machine begins granulating beans to cause an ideal mug of coffee while you get insightful reports dependent on new information from sensors miles away.

However, between your order and satisfied assignments, there lies imperceptible framework that includes numerous components and collaborations.

And to understand these numerous components and collaborations, this article depicts IoT architecture

What is IoT Architecture?

There is a great deal of moving parts that need to cooperate for the Internet of Things to work as proposed.

"With regards to the Internet of Things, design is a system that characterizes the actual parts, the useful association and arrangement of the organization, operational strategies and the information configurations to be utilized."

Architecture is a reference model with the help of that design of the system becomes easy to understand.

Architecture tells us what type of software and hardware will be required within the systems.

So, let's talk about IoT architecture.

In issuance, IoT design is the arrangement of various components: sensors, conventions, actuators, cloud administrations, and layers.

Given its intricacy, there exist 4 phases of IoT engineering.

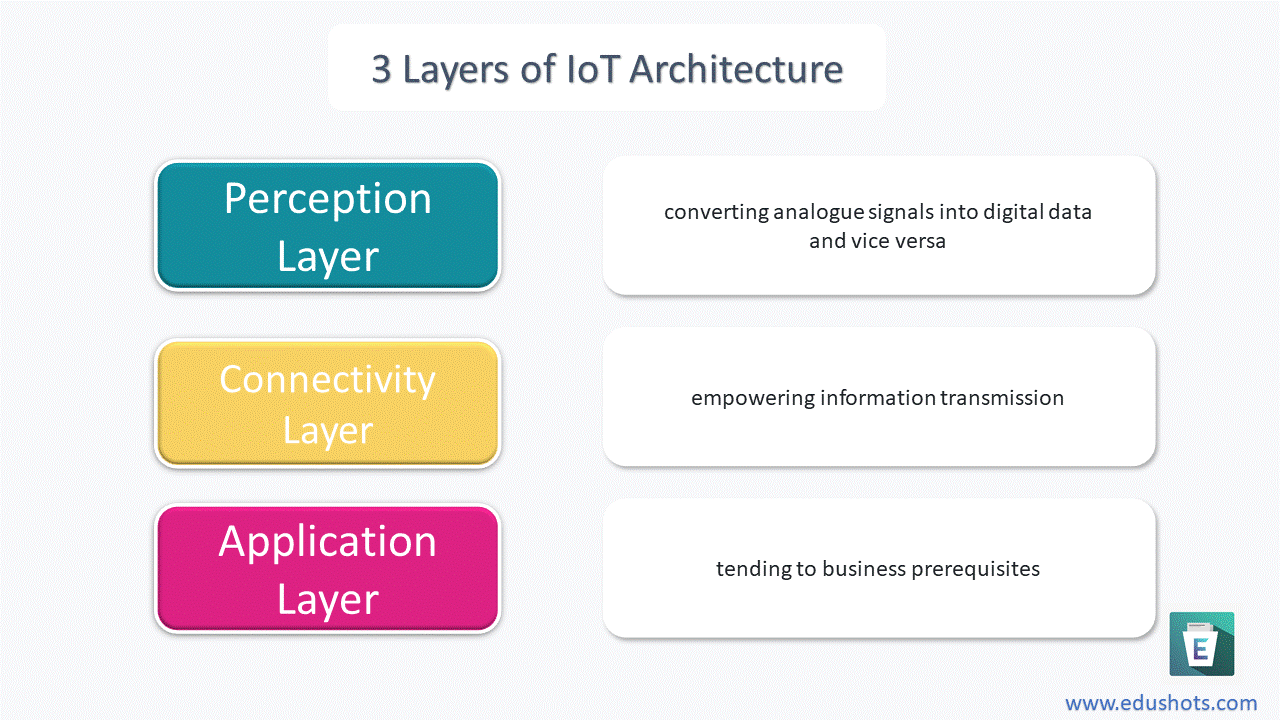

The 3 IoT Architecture Layers

#1 Perception Layers: converting analogue signals into digital data and vice versa

"The underlying phase of any IoT framework accepts a wide scope of "things" or endpoint gadgets that go about as a scaffold between the genuine and advanced universes. They shift in structure and size, from small silicon chips to enormous vehicles. By their capacities, IoT things can be isolated into the accompanying huge gatherings."

  • Actuators: Actuators tests, measures, meters, and others. They gather actual boundaries like temperature or moistness, transform them into electrical signals, and send them to the IoT framework. IoT sensors are regularly little and devour little force.
  • Sensors: interpreting electrical signs from the IoT framework into actual activities. Actuators are utilized in engine regulators, lasers, automated arms.

Machines and gadgets associated with sensors and actuators or having them as vital parts.

It's critical to take note that the design puts no limitation on the extent of its segments or their area. The edge-side layer can incorporate only a couple of "things" truly positioned in one room or heaps of sensors and gadgets dispersed across the world.

#2 Connectivity Layers: empowering information transmission

"The subsequent level is accountable for all correspondences across gadgets, organizations, and cloud benefits that make up the IoT foundation. The availability between the actual layer and the cloud is accomplished twoly:

straightforwardly, utilizing TCP or UDP/IP stack;

by means of entryways — equipment or programming modules performing interpretation between various conventions just as encryption and decoding of IoT information.

#3 Application Layers: tending to business prerequisites

At this layer, data is examined by programming to offer responses to key business questions. There are many IoT applications that change in intricacy and capacity, utilizing distinctive innovation stacks and working frameworks. A few models are:

  • gadget observing and control programming
  • versatile applications for basic collaborations
  • business knowledge administrations
  • logical arrangements utilizing AI.

As of now, applications can be assembled directly on top of IoT stages that offer programming improvement framework with prepared to-utilize instruments for information mining, progressed investigation, and information perception. Something else, IoT applications use APIs to incorporate with middleware.

The 4 Stages of IoT Architecture

  • Stage 1: Sensors and Architectures

The cycle begins with sensors and actuators, the associated gadgets that screen (on account of sensors) or control (on account of actuators) some "thing" or actual interaction. Sensors catch information in regards to the situation with an interaction or a natural condition, like temperature, mugginess, synthetic structure, liquid levels in a tank, liquid stream in a line, or the speed of a sequential construction system just as considerably more.

At times, a sensor may distinguish a condition or occasion that requires a practically prompt reaction so an actuator can perform remediation activities continuously, for instance, changing the stream pace of a liquid, or the developments of a modern robot. In these circumstances, exceptionally low inertness between the sensor and investigation/set off actuator is required. To stay away from the postponement of a full circle of information to the worker, investigation of information to decide disappointment and sending of control to the "thing", this basic handling is acted in nearness to the cycle being checked or controlled. This "edge" handling can be performed by a framework on module (SOM) gadget, for example, a Digi module or potentially a Digi Cellular Router with Python.

  • Stage 2: Internet Gateways and Data Acquisitions Systems

An information procurement framework (DAS) gathers crude information from the sensors and converts it from simple into advanced arrangement. The DAS at that point totals and organizations the information prior to sending it through an Internet door by means of remote WANs (like Wi-Fi or Cellular) or wired WANs for the following phase of handling.

Now, the volume of information is at its greatest. The amounts can be immense, particularly, for instance, in a manufacturing plant setting where many sensors might be gathering information all the while. Consequently, the information is likewise sifted and packed to an ideal size for transmission.

  • Stage 3: Preparing Analytics at Edge

When the IoT information has been digitized and accumulated, it will require handling to additionally lessen the information volume before it goes to the server farm or cloud. The edge gadget may play out some investigation as a component of the pre-handling. AI can be useful at this stage to give input into the framework and improve the interaction on a progressing premise, without trusting that directions will return from the corporate server farm or cloud. Preparing of this sort will by and large occur on a gadget in an area near where the sensors live, for example, in an on-location wiring storage room.

  • Stage 4: Top to bottom in the Cloud or Data Centre

At Stage 4 simultaneously, incredible IT frameworks can be brought to bear to examine, oversee, and safely store the information. This generally happens in the corporate server farm or in the cloud, where information from various field destinations/sensors can be joined to give a more extensive image of the by and large IoT framework and convey noteworthy bits of knowledge to both IT and business administrators. An organization may have tasks in various geologies and IoT information can be examined to recognize key patterns and designs, or to spot abnormalities.

At this level, industry-explicit or potentially organization explicit applications can be utilized to act top to bottom examination and apply business rules to decide if move should be made. The approaching information may show alluring changes to gadget settings or alternate approaches to enhance the interaction, framing a circle that works with consistent improvement. Stage 4 likewise remembers stockpiling for an information distribution centre, both for record keeping and for additional examination.
